What to Know about Photo Etched Sidewalls

Posted by Kathleen Stillman on Jan 24, 2014 8:40:00 AM
Kathleen Stillman
Find me on:

Different metal cutting processes produce different effects at the cut line. Stamping and punching can leave a deformation and a burr on the die side of the plate.  Laser, plasma and EDM can leave a heat-affected zone or recast layer.  Abrasive slurry water jet can leave a somewhat erose sidewall.  And photo chemical machining has its own sidewall artifact that we call a "feather."

Most often, photo etching is done from both sides equally and at the same time as a "50/50" etching ratio. As the etchant penetrates from each side of the metal, the cutting path widens at the surface as it deepens.  This effect occurs at the predictable rate of .00025" in width per .001" of cut depth.  The feather reaches its maximum at the point of breakthrough.  To calculate the feather, multiply .00025" by half the metal thickness.

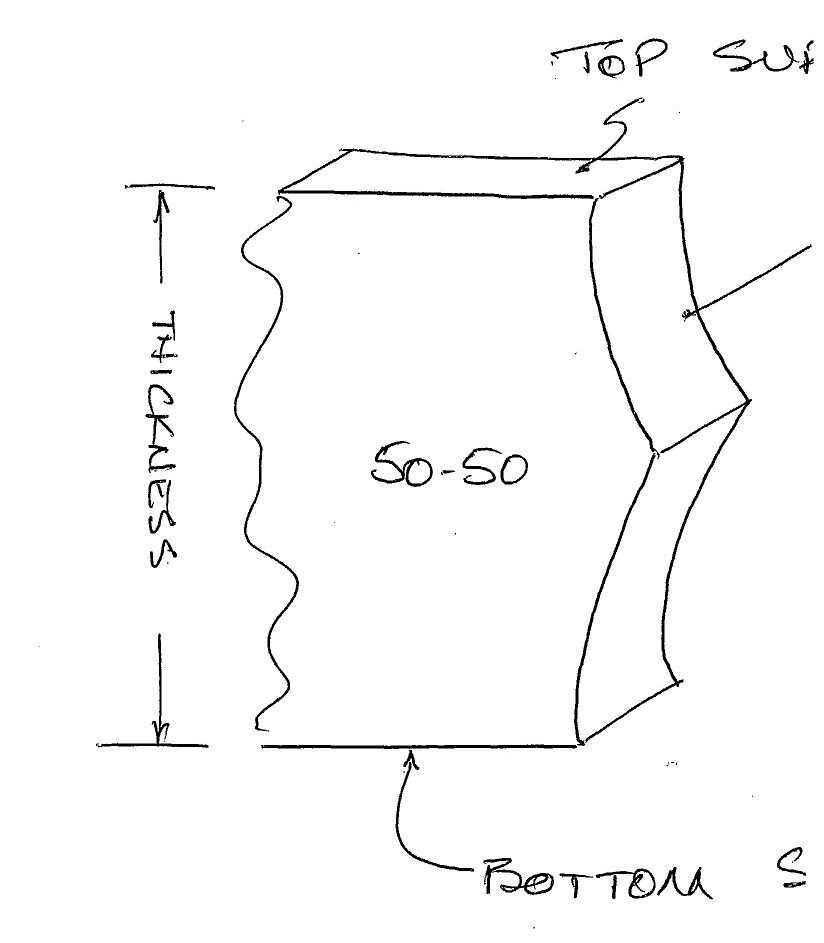

SIDEWALL

Unless otherwise specified, we measure to the feather.  If your application is more sensitive to total surface area, we need to know that so we can discuss with you the implications with regard to mechanical dimensions at the feather.

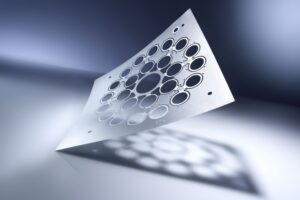

There are times in photo etching that we use other etch ratios, such as 60/40 or 80/20.  Usually, the applications for this involve filtration to produce a hole on one side that is smaller than the metal thickness would typically allow.  The rule of thumb is that the minimum hole size is 115% of the metal thickness.

With a ratio etch, we treat each side of the metal as if it were a different thickness.  If we wanted to use an 80/20 ratio on .010 material, we would treat the 20% side as if it were .004" thick and the 80% side as if it were .016 thick.  With this ratio, we could put a .005" hole on the 20% side and the 80% side would be about .018.  The center distances on the holes would have to be the 80% side plus the overall metal thickness.

Using a ratio etch, the feather will move to the new breakthrough line, in our example it would be .002" from the 20% side of the sheet and the feather will be driven by the 80% side and will therefore be .00025" x 8, or .002".

For more information about desgining for photo etching, please feel free to download information from our website:

Download Now Engineering Design Guidelines
